SoC, Multi-Die, and SiP: Choosing the Right Integration Strategy

As chips grow more complex, not every design has to be built as one monolithic die. Choosing between a single-die SoC, a multi-die (chiplet) approach, or a System-in-Package (SiP) is an increasingly important architectural decision.

VIDYUTT• July 27, 2026• 2 min read

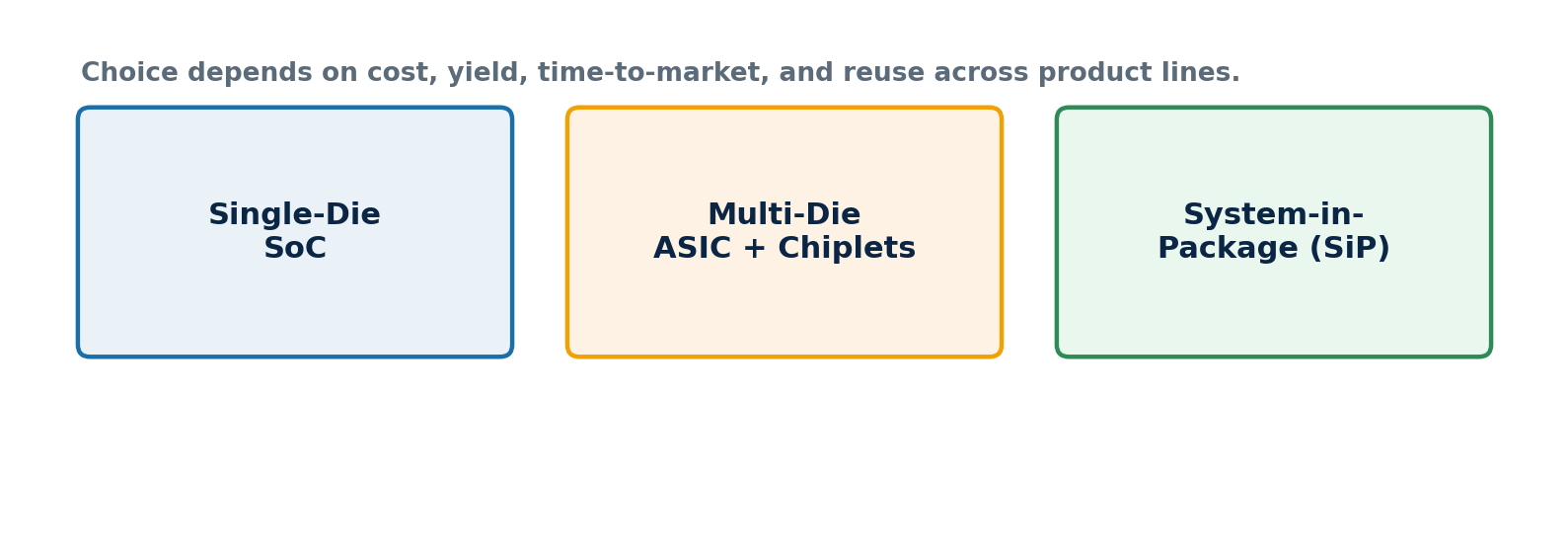

Figure 1: Three common integration strategies – single-die SoC, multi-die/chiplet ASIC, and System-in-Package.
Figure 1: Three common integration strategies – single-die SoC, multi-die/chiplet ASIC, and System-in-Package.

What This Decision Involves

A single-die SoC integrates everything on one piece of silicon – simplest to design and verify, but yield drops as die size grows. A multi-die or chiplet approach splits the design across multiple smaller dies connected by high-speed interfaces, improving yield and enabling mixing of process nodes. A System-in-Package combines multiple chips (and sometimes passive components) into one package, offering flexibility to integrate parts sourced from different processes or vendors.

Why It Matters

This decision affects cost, yield, time-to-market, and how easily a product line can be extended with new variants. Larger monolithic dies become increasingly expensive and risky to manufacture as they grow, while multi-die approaches add packaging complexity and inter-die communication design challenges.
